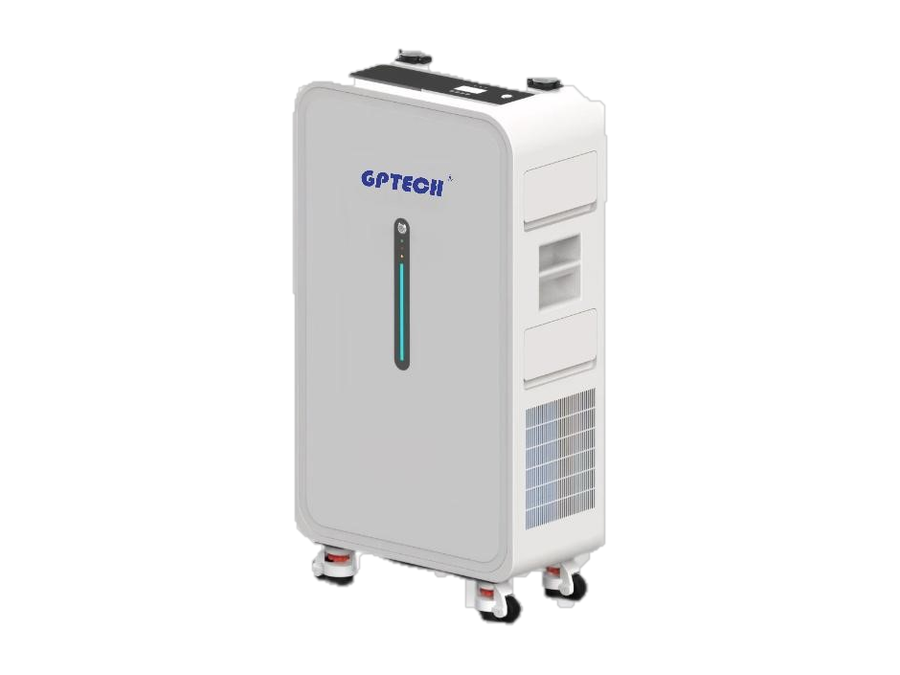

All-in-One Home Storage System

Name: All-in-One Home Storage System
Brand: GPTECH

Integrated inverter · 5 / 10 / 16 kWh

Rooftop power, grid power and the household load normally need three separate boxes to meet. This one holds the battery, a 6,200 W inverter and the PV input in a single enclosure — one machine to site, one set of terminations, and grid/off-grid switching handled on its own. Three capacities share the same shell, from 5 kWh to 16 kWh.

Request a Quote Download Datasheet

The inverter is already inside
6,200 W pure sine output. No separate inverter to buy, and no second mounting position to find.
PV goes straight in
120–500 V, 22 A max PV input — the roof connects to the cabinet and the day's generation is stored where it lands.
It catches the outage
Automatic grid/off-grid transfer, 170–280 V wide input in UPS mode, so a sagging supply does not drop the load.
Every socket you need
Three AC outlets plus a terminal block, two DC, two USB-A and two USB-C at 100 W PD.

Technical specifications

Chemistry	Lithium iron phosphate (LFP)
Energy	5.12 / 10.55 / 16.08 kWh
AC input	170–280 V @UPS (90–280 V @APL), 50/60 Hz, 6,200 W max
PV input	120–500 V, 22 A max
AC output (terminal block)	230 V ±5%, 50/60 Hz, 6,200 W max
AC output ×3	230 V ±5%, 50/60 Hz, 2,200 W each (6,200 W total)
DC output ×2	12 V⎓10 A, 120 W max

USB output	USB-A ×2 QC 20 W · USB-C ×2 PD 100 W
Operating mode	Grid-tied / off-grid
Output waveform	Pure sine wave
Cycle life	6,000+
Dimensions / weight	550 × 280 × 807 mm / 78 kg (5 kWh); 550 × 280 × 987 mm / 115 kg (10 · 16 kWh)
Operating temperature	−10 °C to +50 °C
